Paioli 38mm Forks Tech Specs

• Inner fork tube OD: 38mm
• Damper rod OD: 10mm
• Oil volume: 345cc
• Oil weight: 5wt
• Rebound adjuster: 35 clicks
• Preload adjuster: 10.5 turns
• Base valve piston: 22mm OD
• Mid valve piston: 22mm OD
• Fork Seal: 38x50x7.95mm (IDxODxH)
• Fork Inner Bushing: 36x38x19.8 (IDxODxH)
• Fork Outer Bushing: 38x42x11.9 (IDxODxH)
• Spring: 23x33x434mm (IDxODxH)
• Right Fork: Rebound / Damper

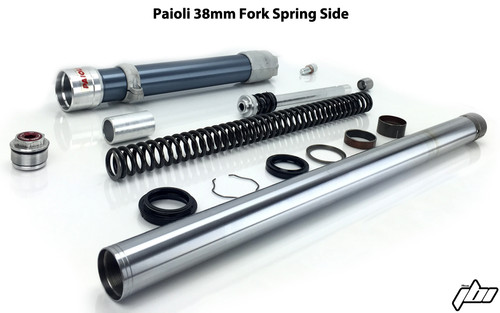

• Left Fork: Spring

Ride JBI's Review of the Paioli 38mm Fork
This set of forks is from a 1999 Montesa Trials bike.  The oil volume is spec from the Pailoi manual.

JBI Suspension Mods Available

8.22.16
