Sachs Closed Cartridge Fork Tech Specs

• Inner fork tube OD: 48mm
• Damper rod OD: 12mm
• Oil volume range: 300-390cc (350cc stock)
• Oil weight: 5wt or less
• Rebound adjuster: 12 clicks
• Compression adjuster: 12 clicks
• Base valve piston: 7x30.5x14mm (IDxODxH)
• Mid valve piston: 7x23x13mm (IDxODxH)
• Fork Seal: 48x58x8.5mm (IDxODxH)
• Fork Inner Bushing: 46x48x20 (IDxODxH)
• Fork Outer Bushing: 48x52x12 (IDxODxH)
• Fork spring: 33x43.3x465 (IDxODxLength)

Ride JBI's Review of the Sachs Closed Cartridge Fork

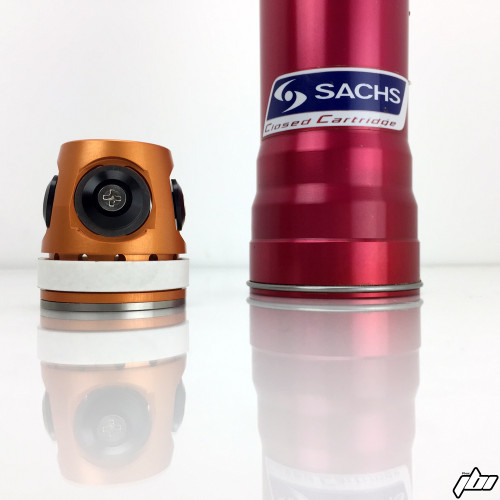

The Sachs Closed Cartridge fork is made from quality materials and features a smart yet simple design that is effective and tune-able.  This fork can be valved to be very soft for slow technical enduro off-road riding or built firm enough to handle the speeds and demands of Motocross.  Currently Beta motorcycles uses this fork on their highly competitive Race Editions.   This fork responds well to the JBI Pro Perch.

JBI Suspension Mods Available
